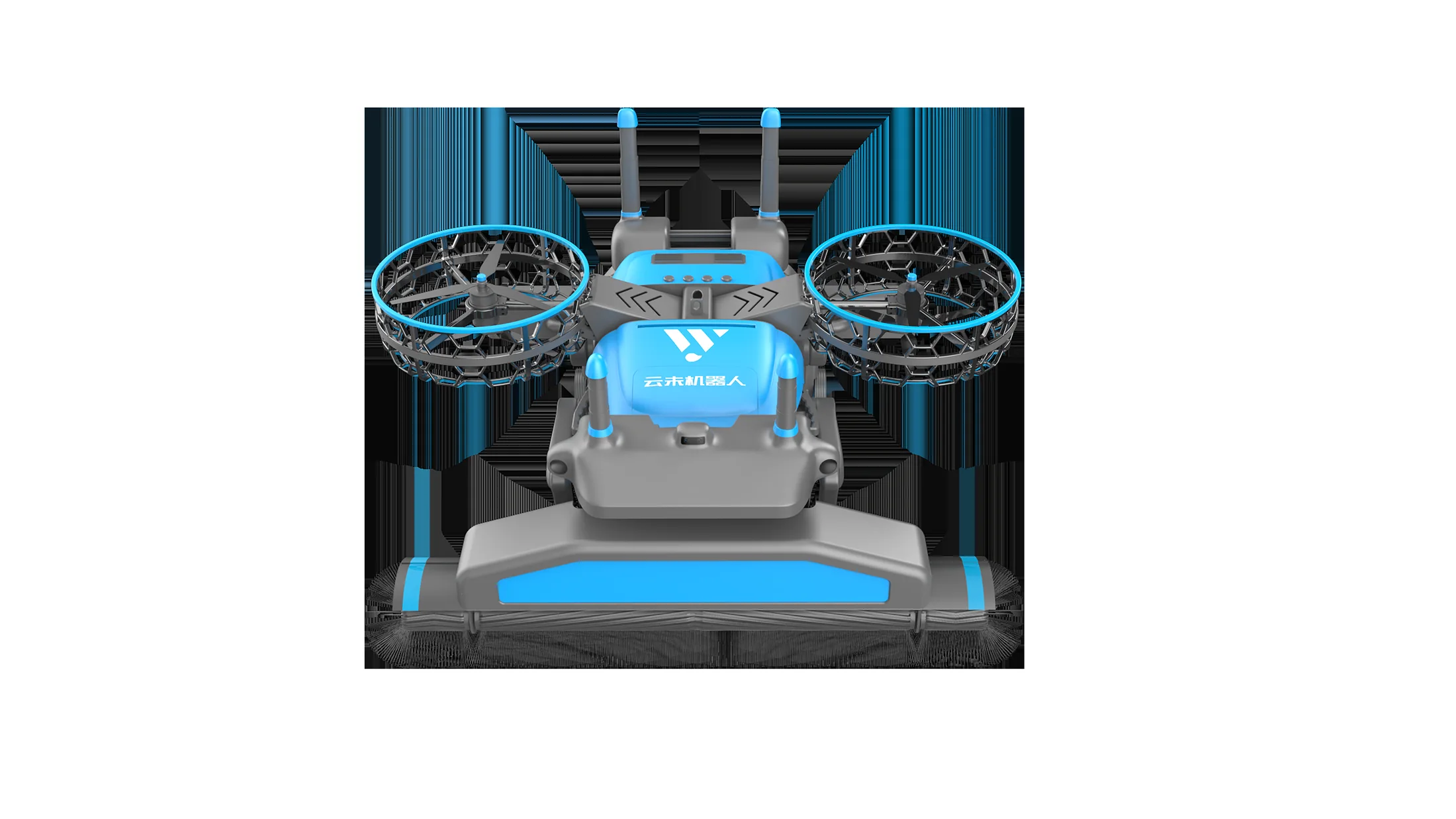

Front operating profile
Compact front profile for curtain wall movement and controlled facade coverage.
CloudWalker Robotics / TNQ1
TNQ1 turns facade work into repeatable robotic operations.
A compact embodied robotics platform designed for high-rise cleaning teams, property operators, and facade maintenance partners.
Product architecture
A premium robotics platform, not a single-purpose cleaning tool.
TNQ1 combines attachment, locomotion, perception, and cleaning into one platform so operators can cover more facade types with fewer manual interventions.
TNQ1 specifications
Core machine parameters for procurement review.
| Model | TNQ1 |
|---|---|
| Weight | 50 kg |
| Dimensions | L1100 x W760 x H1280 mm |
| Rated power | 0.8 kW |
| Working voltage | AC220V |
| Operating frequency | 50/60 Hz |
| Applicable facade types | Hidden-frame, exposed-frame, composite curtain walls, windows, stone and glass facade combinations |
| Applicable materials | Glass, stone, metal plate |
| Comprehensive efficacy | 1500-2000 m²/day |
| Cleaning width | 0.6-1.5 m |
| Construction height | ≤200 m |
| Obstacle clearance height | ≤200 mm |
| Working temperature | 5-50°C |
| Wind resistance rating | VI |
| Protection level | IP54 |
Specifications are derived from CloudWalker Robotics brochure materials and should be confirmed before final public launch.
Product views
Multiple angles for buyers and technical evaluators.
Facade operating scene
TNQ1 shown in a facade deployment context for buyer-facing product evaluation.

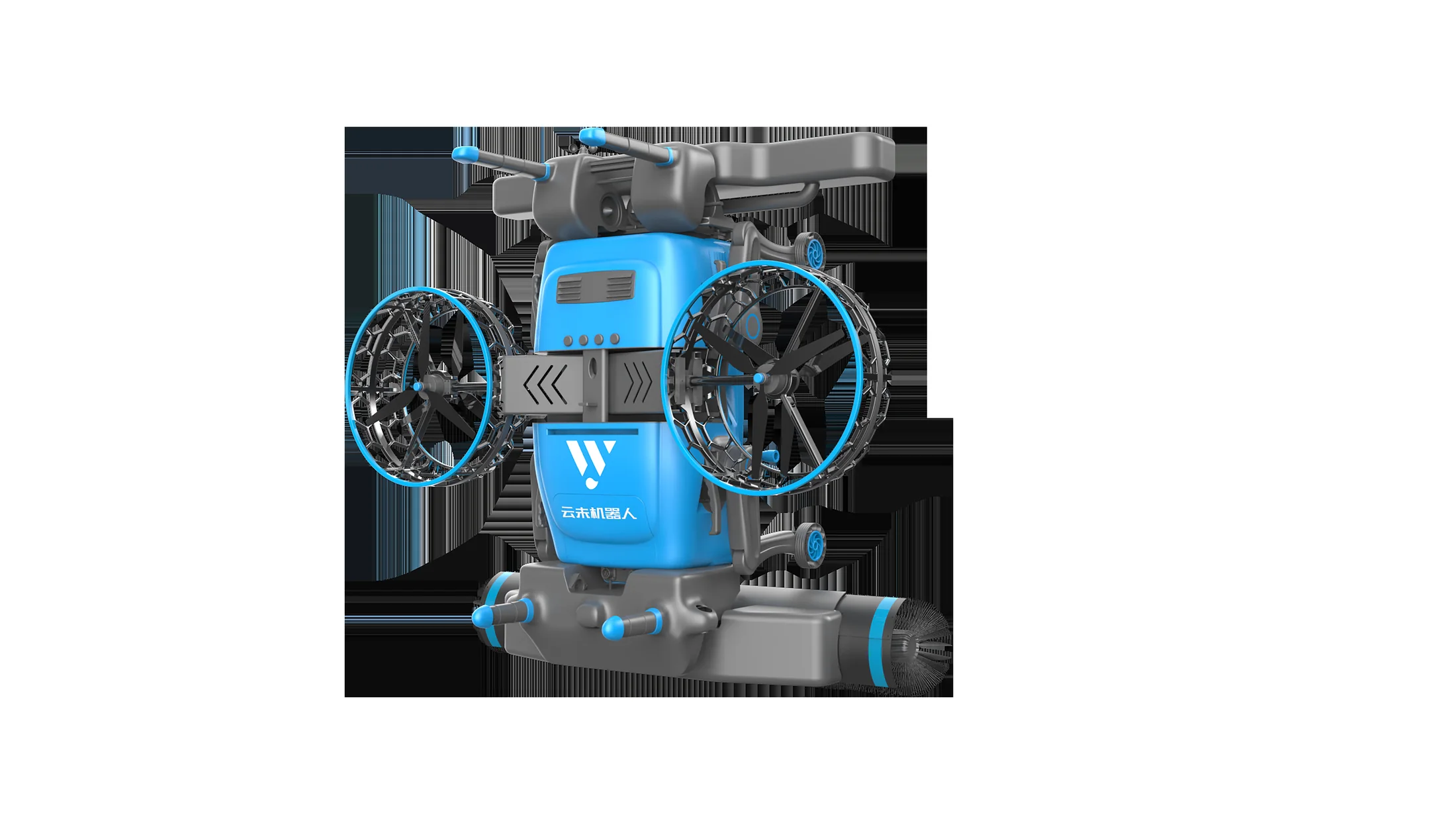

Vertical climbing posture
Designed for vertical contact, attachment, and obstacle negotiation.
Core capabilities
Built for stability, obstacle crossing, perception, and cleaning quality.
Wheel-leg-wing mobility
High-flex wheel-leg locomotion and coaxial ducted fans help TNQ1 maintain contact, cross facade frames, and operate across mixed surfaces.
20 cm obstacle crossing
Active and passive obstacle strategies help the robot move past mullions, decorative strips, and low facade protrusions without stopping work.
Facade perception
Edge AI identifies facade structures, materials, dirt patterns, and defect categories while keeping deployment simple for operators.
Cleaning system
Microbubble water jetting, dynamic pressure control, and fin-inspired brushing improve coverage while reducing water use.

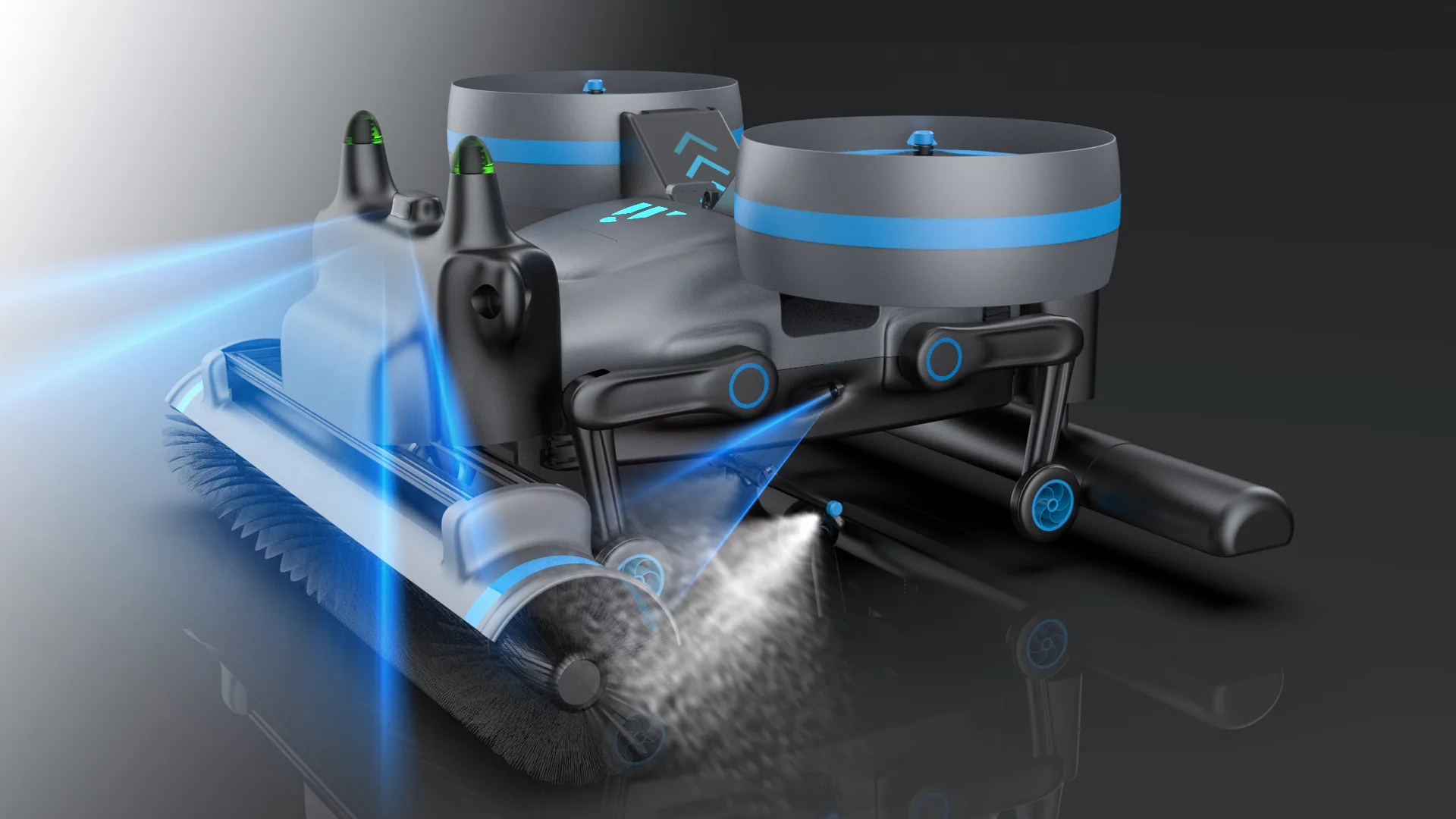

Perception and jet cleaning
Vision-assisted operation and precision water delivery support more consistent facade results.
Microbubble jet and brushing
Jetting and brush systems target dirt removal while keeping water use controlled.

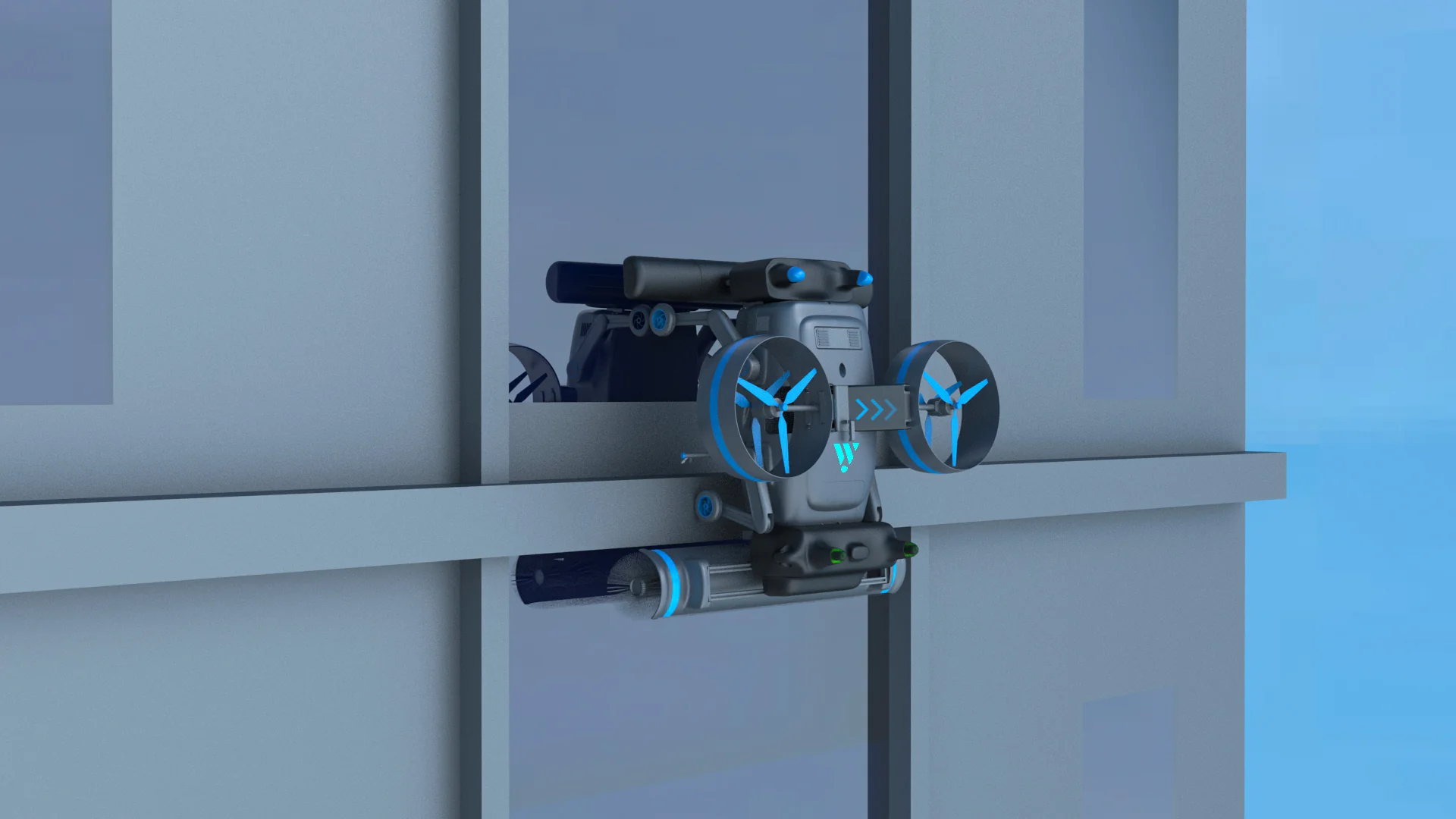

High obstacle crossing
Active movement strategies help TNQ1 cross facade protrusions and frame geometry.

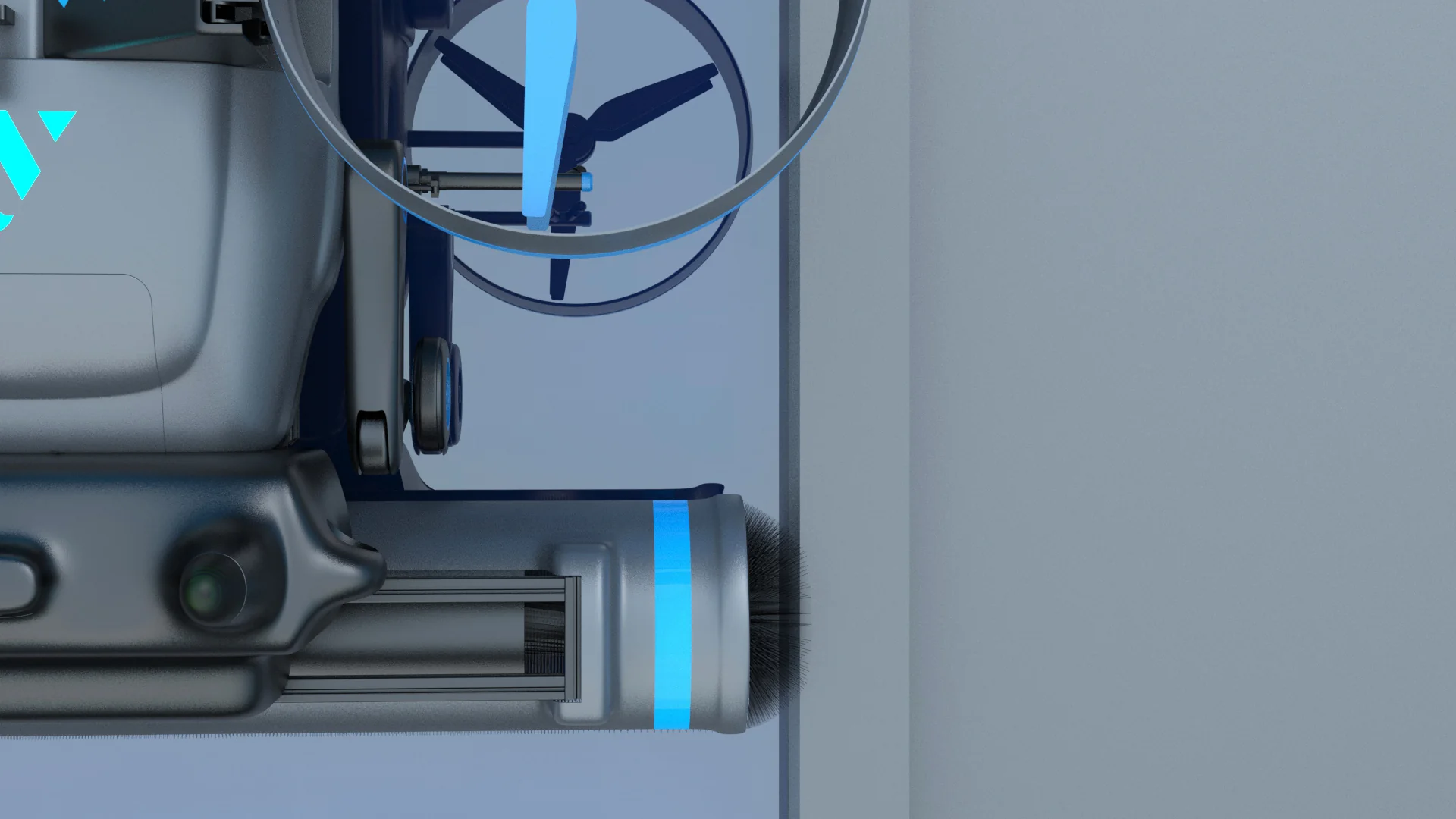

Edge brush detail
Close-range cleaning hardware improves coverage near edges and facade details.
International partnerships
Bring high-rise facade robotics to your market.
Work with CloudWalker as a property group, cleaning operator, distributor, or regional service partner.
